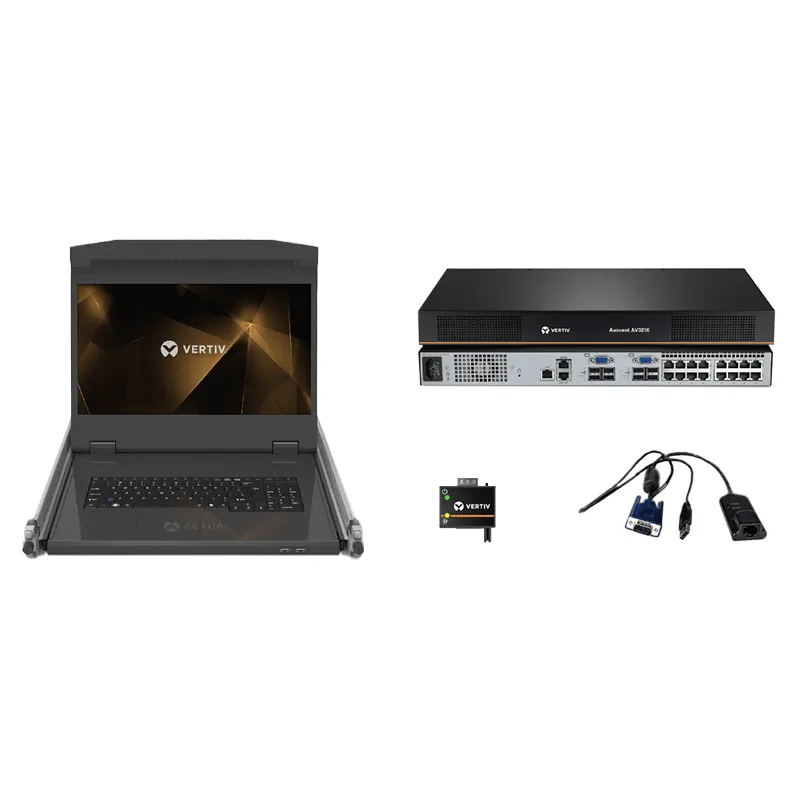

The Vertiv® CLRA Local Rack Access Console family is here to help make your
job easier. The new CLRA now comes with an 18.5” LCD panel that support high
definition resolution (1920 × 1080) and supports the next-generation rails that allow
seamless installation into the racks without any tools. This allows you quick and easy
access to multiple servers, making software upgrades, troubleshooting and system
monitoring more convenient and less time consuming.
Height (rack units): 1U
Dimensions & Weight: 481.3mm × 526.4mm × 42.5mm (8.3kg)
Rack Post Distances (Outside-to-Outside) Includes round hole posts, square hole posts and threaded posts
- Console Only 620mm – 920mm
- Provision for KVM Switch 730mm – 920mm
18.5-Inch LED Monitor
- Power Maximum: 22 Watts / Nominal: 17 Watts / Standby: <1 Watts
- Auto-ranging power supply Input: 110-240 VAC
- Power Connection IEC C-14 to the PDU
- Display Type 18.5” LED LCD Monitor, 16:9 Aspect Ratio
- Resolution MAXIMUM: 1920 × 1080 @60Hz; STANDARD: 1366 × 768 @60Hz; MINIMUM: 800 × 600 @60Hz
- Scaling Full Screen, Aspect, 1:1
- Video Input VGA
- Display Active Area 18.5 in
- Pixel Pitch 300 × 300
- Viewing Angle 160° Horizontal (typ.), 150° Vertical (typ.)
- Luminance 250 cd/m² (typ.)
